Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling

1
MOQ
negotiable
Preis
Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Name: GL260T Brunnenbohrgeräte, hydraulische Anhängerbohrgeräte
Stichwort: Anhängerbohrmaschinen
Tiefe: 260m
Lochdurchmesser.: 140-305mm
Bohrgestänge: 76mm, 89mm
Rotationsgeschwindigkeit: 45-70rpm
Hebekraft: 15T
Gesamtgewicht: 6500 kg
Transportdimension: 4000x1850x2300mm
Breite der Ladung ((m): 2,73 m
Hervorheben:

260m Depth Drill Rig Machine

,

Hydraulic Drive Trailer Mounted Drill Rig

,

70kw Diesel Engine Water Well Drilling Equipment
Grundinformation
Herkunftsort: China
Markenname: Glorytek
Zertifizierung: CE
Modellnummer: GL260T
Zahlung und Versand AGB
Verpackung Informationen: 40HQ Container
Lieferzeit: 20 Tage
Zahlungsbedingungen: T/T, L/C, Western Union, Moneygram, d/p, d/a
Versorgungsmaterial-Fähigkeit: 40sets/month
Produkt-Beschreibung

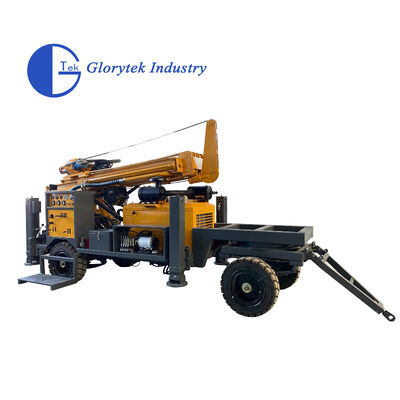

GL260T Well Drilling Equipment Hydraulic Trailer Drill Rig Machines
This industrial water well drilling equipment is a trailer-mounted drill rig capable of reaching depths up to 260 meters. It is widely used in industrial and agricultural water conservancy projects, including drilling wells, test wells, and other exploration boreholes.
The rig can also meet engineering requirements for reinforcement, loose gravel drilling, and rock formation connections with various engineering specifications. The entire machine features full hydraulic drive for reliable operation and low failure rates.
Key Features
  • Full hydraulic drive system for reliable operation
  • Hydraulic compensation mechanism in drill tower assembly
  • Powered by 70kw diesel engine
  • Maximum drilling depth: 260 meters
  • Hole diameter capacity: up to 12 inches (305mm)
  • Trailer-mounted for easy transportation
Technical Specifications
Parameter Specification
Hole Diameter (mm) 140-305
Drilling Depth (m) 260
Drill Pipe Diameter (mm) 76mm, 89mm
Drill Pipe Length (m) 1.5m, 2.0m, 3.0m
Power (kw) 70
Rotating Torque (N.m) 4000-5300
Dimension (mm) 4000x1850x2300
Weight (T) 6.5
Equipped with Hammer Medium and high air pressure series
Manufacturer Profile
Hydraulic Drive Trailer Mounted Drill Rig Machine with 70kw Diesel Engine for 260m Depth Water Well Drilling 0
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. We are supported by a highly experienced R&D team and engineers that enable us to complete all assigned projects successfully according to clients' requirements.
Glorytek Drill is one of the most important members of "Sundrill Corporation." Our factory covers an area of 250,000 square meters with construction area of about 150,000 square meters. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, with more than 600 employees. Our products have been exported to more than 60 countries worldwide.
Frequently Asked Questions
What is your payment terms?
We can accept T/T and L/C payments.
What is your MOQ? How long is the delivery time?
Our minimum order quantity is 1 set. Normally for drill rigs, delivery time is about 25-30 days after receiving payment. For drilling tools, delivery time is approximately 3-5 days.
How long is the warranty?
The guarantee period for the main host is one year (excluding quick wear parts).
Can we print our logo on the products?
Yes, we support OEM services and can print your logo on the products.
