DTH Hammer Bit
Product Description
Glorytek can provide CIR, DHD, QL,SD,Mission, etc. series of DTH Hammer and bits. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.
Our hammer and bits are made of high quality alloy steel with advanced heat threatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.
Product Parameters
| Type |
Number of
Air hole |
DIa.(mm) |
Weight(kg) |
Gauge Button |
Front Button |
| GL4.5-115 | 2 | 115-118 | 6.4 | 7*ф14 | 6*ф12 |
| GL4.5-120 | 2 | 120-123 | 7 | 7*ф14 | 6*ф12 |
| GL4.5-130 | 2 | 130-133 | 8 | 7*ф14 | 6*ф12 |
| GL4.5-140 | 2 | 140-143 | 8.2 | 7*ф14 | 6*ф12 |
| GL4.5-150 | 2 | 150-153 | 9 | 7*ф14 | 6*ф12 |
| GL330-85 | 2 | 82-85 | 3.4 | 6*ф14 | 3*ф12 |
| GL335-90 | 2 | 90-93 | 4.6 | 6*ф14 | 7*ф12 |
| GL340-105 | 2 | 105-108 | 7.7 | 8*ф14 | 7*ф13 |
| GL340-115 | 2 | 115-118 | 8 | 8*ф14 | 7*ф13 |
| GL340-130 | 2 | 130-133 | 10.5 | 8*ф14 | 8*ф13 |
| GL350-130 | 2 | 130-133 | 17 | 7*ф16 | 7*ф14 |
| GL350-140 | 2 | 140-143 | 18 | 7*ф16 | 7*ф14 |
| GL350-152 | 2 | 152-155 | 19 | 6*ф16 | 6*ф14 |
| GL360-152 | 2 | 152-155 | 25 | 8*ф16 | 11*ф14 |
| GL360-165 | 2 | 165-170 | 26.5 | 8*ф16 | 11*ф16 |
| GL360-178 | 2 | 178-183 | 28.6 | 8*ф16 | 11*ф16 |
| GL360-194 | 3 | 194-197 | 30 | 9*ф16 | 12*ф16 |
| GL360-203 | 3 | 203-206 | 32 | 9*ф16 | 13*ф16 |
| GL360-216 | 3 | 216-219 | 35 | 9*ф16 | 13*ф16 |
| GL360-230 | 3 | 230-233 | 37 | 12*ф16 | 16*ф16 |
| GL360-254 | 3 | 254-257 | 43 | 12*ф16 | 16*ф16 |
| GL360-305 | 3 | 305-308 | 57 | 14*ф18 | 26*ф16 |
| GL380-203 | 2 | 203-206 | 48 | 8*ф18 | 10*ф16 |
| GL380-216 | 3 | 216-219 | 50 | 9*ф18 | 13*ф16 |
| GL380-230 | 3 | 230-233 | 53 | 9*ф18 | 17*ф16 |
| GL380-254 | 3 | 254-257 | 58 | 9*ф18 | 16*ф16 |
| GL380-310 | 3 | 310-313 | 71 | 12*ф18 | 15*ф16 |
| GL380-350 | 4 | 350-353 | 80 | 16*ф18 | 36*ф16 |
| GL3120-302 | 3 | 302-305 | 176 | 12*ф18 | *ф18 |
| GL3120-311 | 3 | 311-314 | 177 | 12*ф18 | *ф18 |
| GL3120-330 | 3 | 330-333 | 186 | 12*ф18 | *ф18 |
| GL3120-357 | 3 | 357-360 | 196 | 18*ф18 | *ф18 |
| GL3120-381 | 3 | 381-384 | 205 | 18*ф18 | *ф18 |
| GL3120-444 | 3 | 444-447 | 230 | 18*ф18 | *ф18 |
| GL3120-483 | 3 | 483-486 | 285 | 18*ф18 | *ф18 |
| GL3120-508 | 3 | 508-511 | 311 | 18*ф18 | *ф18 |

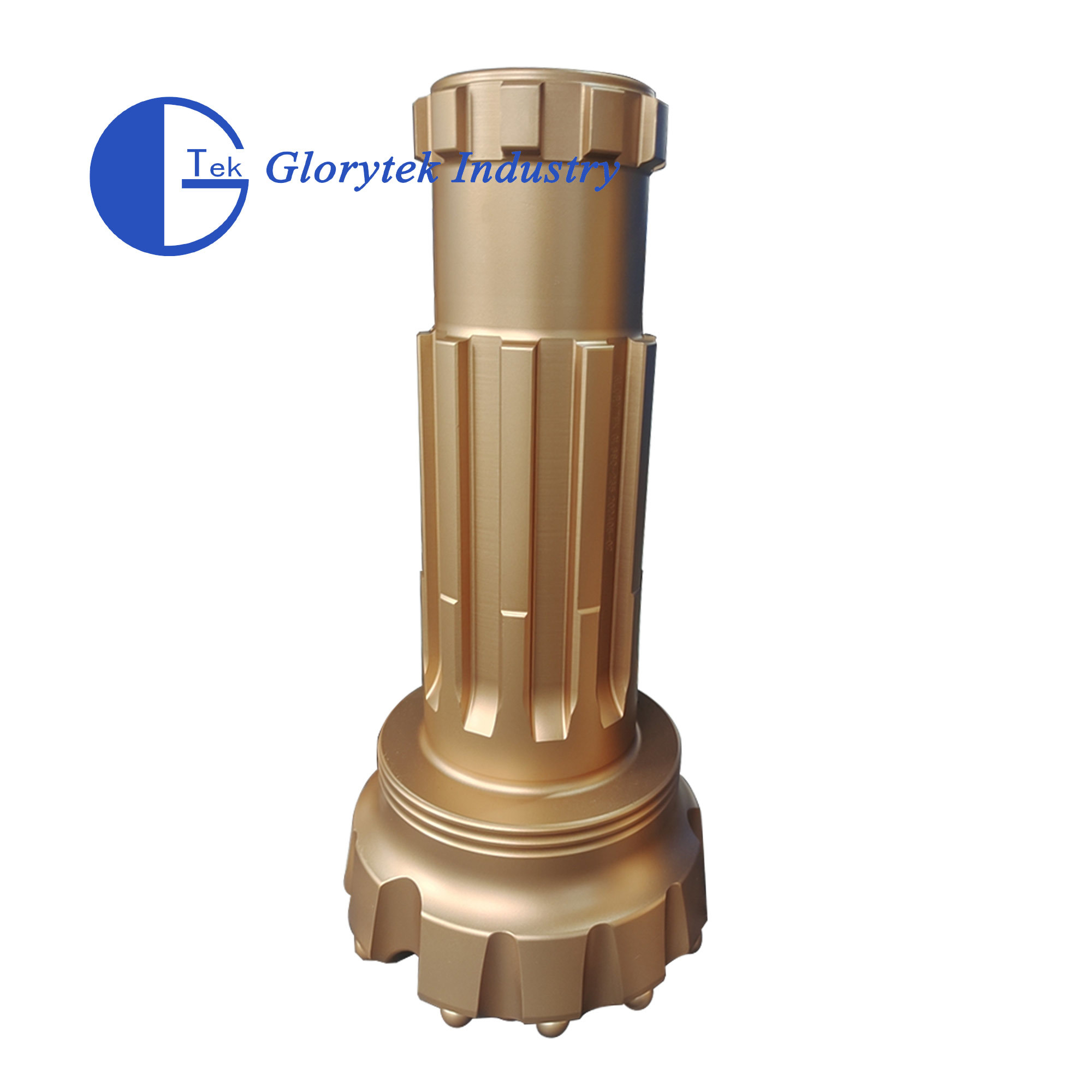

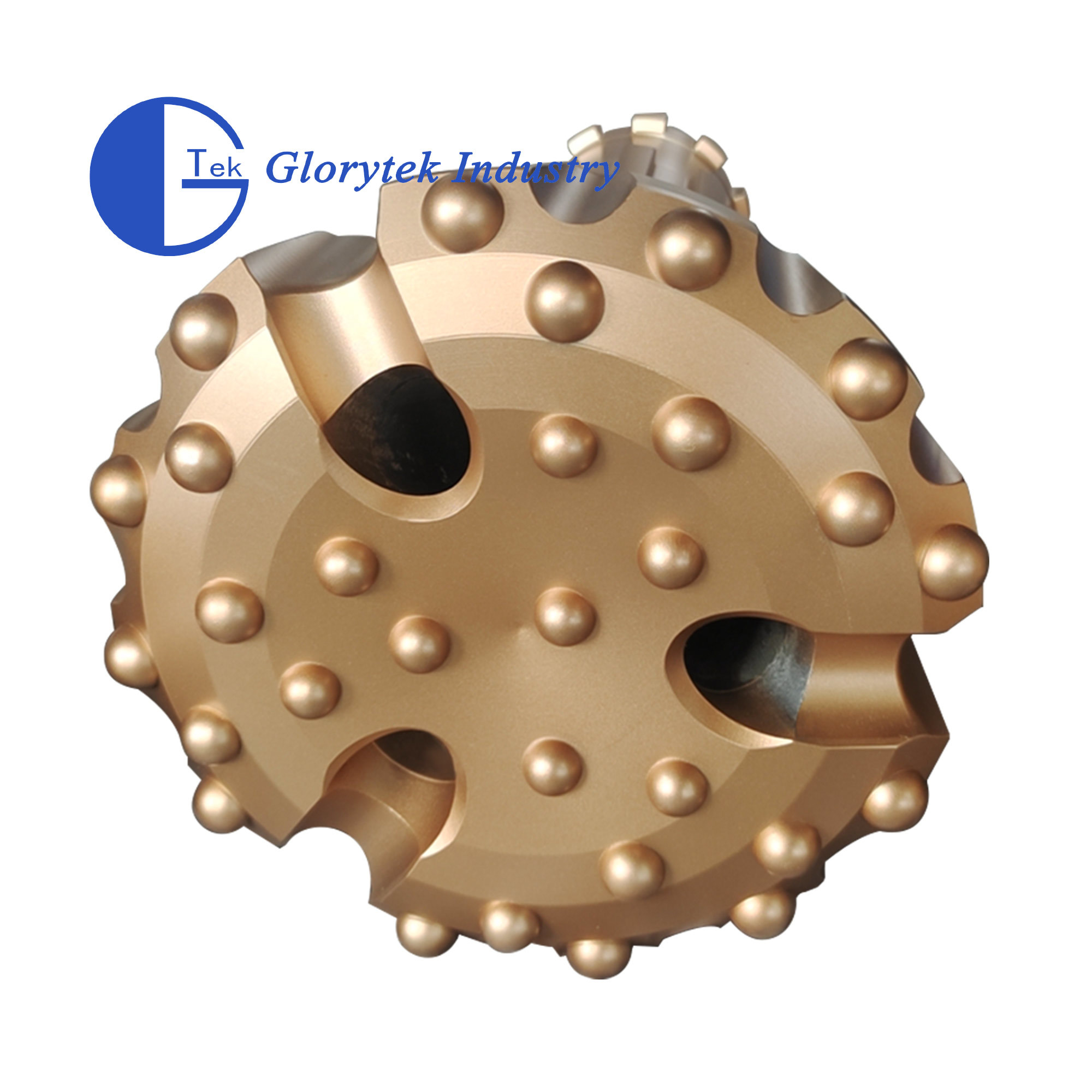

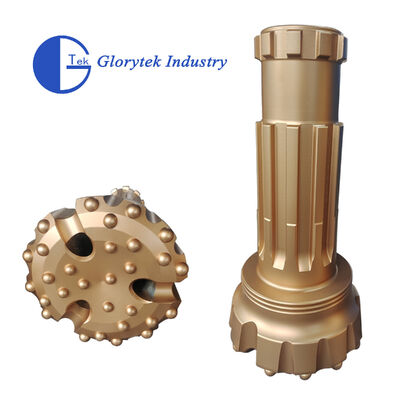

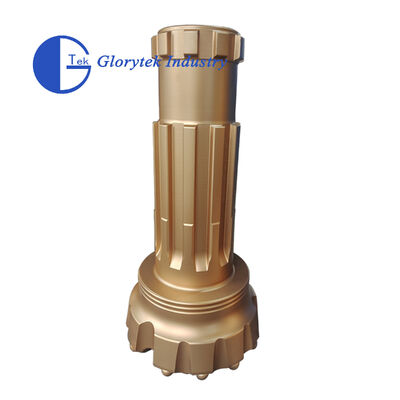

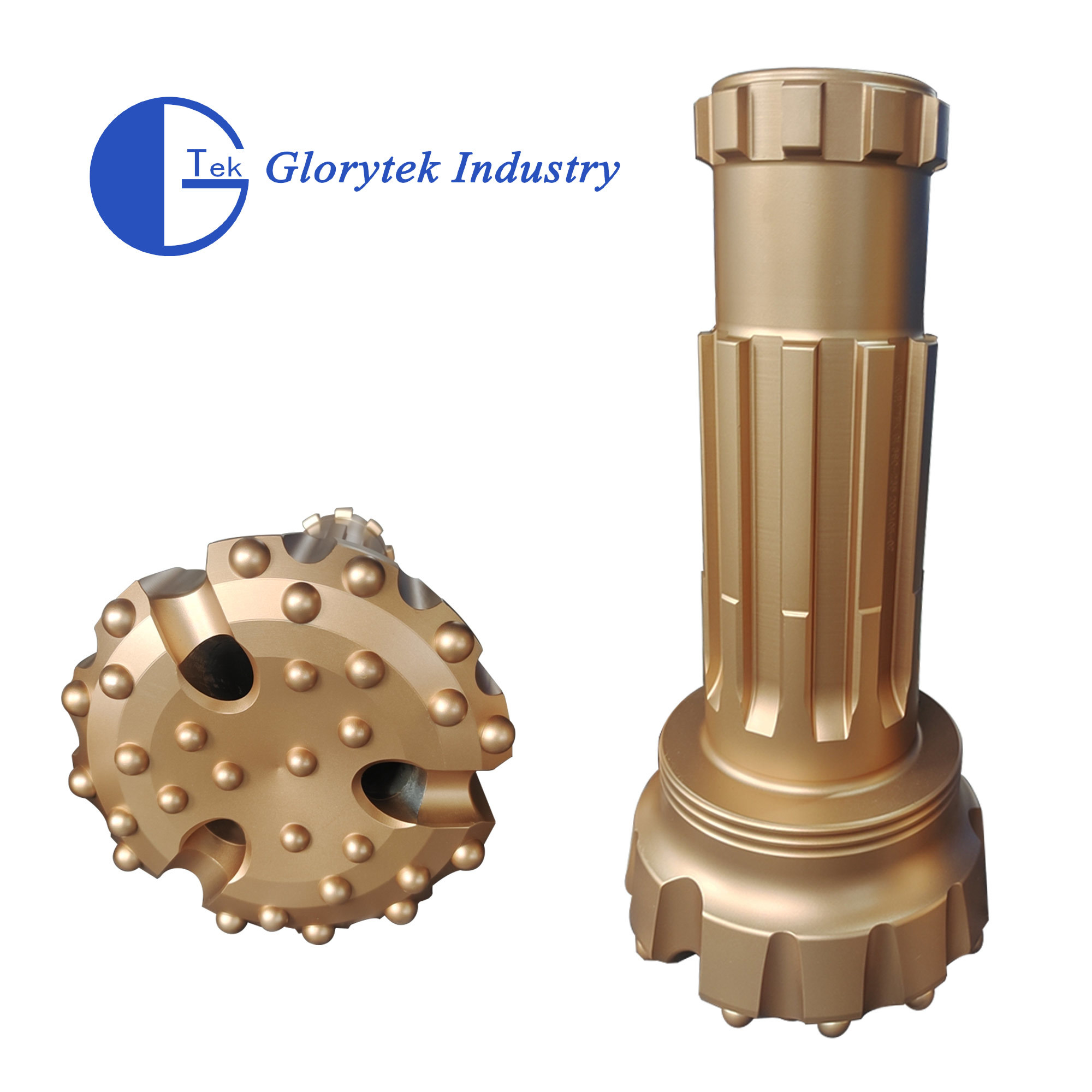

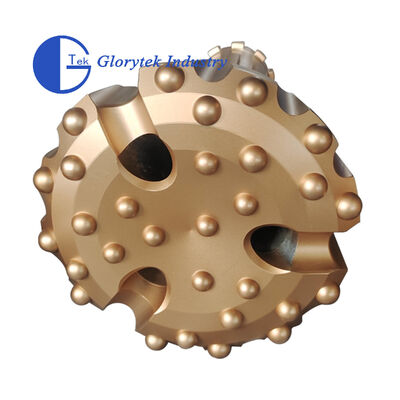

Detailed Photos
Company Profile
Glorytek Industry (Beijing) Co., Ltd, based in Beijing, China, is a leading manufacturer and exporter of high-quality drilling equipment and parts. With a highly experienced team of designers and engineers, we successfully deliver projects tailored to our clients' requirements. Our products find extensive use in mining, water well drilling, exploration, anchor grouting, side slope protection, oil and gas, underwater rock drilling, hydropower, and national defense projects.
After-sale Warranty
- Free change once the problem caused by the quality issue.
- Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
